FIBC Lift
| Category: Lifts |
| Capacity: Up to 5,000 lbs. |
| Discharge Reach: Up to 72 inches |
| Slue/Rotation: Up to 270° |
| Bag Range: Per Application |
| Controls: Allen-Bradley |
Description

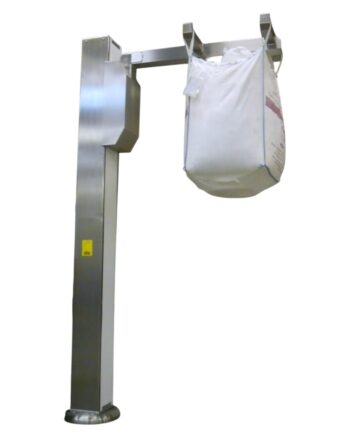

The FIBC Lift by CDM is a sanitary post lift engineered to safely raise bulk bags and Super Sacks for efficient discharge into downstream equipment. It minimizes dust and ensures smooth, precise operation in cleanroom environments. Each lifting arm is custom-designed to match the specific bag dimensions for a secure fit. Featuring an Allen-Bradley control system, the lift delivers reliable performance and accurate monitoring. Built to meet cGMP standards, it provides outstanding safety, cleanliness, and efficiency for powder processing applications.
Lifting Column
The column is built from 304 stainless steel and polished to a uniform brushed finish. All external welds are ground smooth to match the parent material. All motors, gearboxes, and electrical enclosures remain fully enclosed within the footprint of the column. The lift maintains a clean exterior and minimizes exposure to the production environment.
Ball-Screw Driven
A precision ball screw drive couples directly to an electric gearmotor with a fail-safe brake. The screw and nut feature matching helical grooves where lubricated ball bearings circulate continuously for efficient motion. The system achieves smooth, accurate lifting under full load. The Ball-Screw drive configuration represents one of the safest and most efficient lifting technologies available.
Additionally, every lift includes a Safety Ball Nut Clutch. This direct-engagement clutch is mounted to the lift drive ball nut and releases automatically if the carriage lowers onto an obstruction. As a result, the clutch prevents component damage and enhances operator safety. Reversing direction automatically reengages the drive for immediate recovery.
cGMP Slot Cover
The front slot of the column features CDM’s patent-pending magnetic “Positive Seal Closure.” This two-part magnetic strip forms a watertight seal that moves with the carriage. In this way, the seal continuously closes behind it as the lift travels, reducing the chance of contamination. This design simplifies washdown and improves overall cleanliness in the production area.
Rotation (Slue)
A TEFC electric gearmotor powers the column rotation, located conveniently at the rear base beneath a stainless steel cover. The design allows over 270° of smooth, programmable rotation. Maintenance or Site Administrators can easily set custom slue angles to match their process layout.
Super Sack Lifting Arm
The lift will be equipped with a custom Super Sack Lifting Arm. The Super Sack Lifting Arm will allow the standard lifting loops on the Super Sack to be easily looped over the (4) corresponding hooks on the arm, safely and securely capturing the FIBC. Once the FIBC is secured the Super Sack Lift will raise the FIBC and slew over the intended downstream equipment for discharge. After discharge the lift will return to the load position ready to be used again.
Operator Controls
Controls all equipment movements with automated sequencing and ‘Deadman’ control. Releasing the operator switch halts the sequence, forward or reverse may be selected at any position. At minimum, the following user interfaces will be provided: Power On/Off, Emergency Stop, Reset, Sequence Forward/Reverse.
Operator Panel Enclosure and Mounting
NEMA 4X Stainless Steel Enclosure. (*Other enclosure options available upon request.)
Operator Interface
6.5” Allen Bradley PanelView Plus 7 Touch Screen. (*Other interface options available upon request.)
Power Panel
High and low voltage panels. The panels house the PLC, VFDs, fuses, relays and power disconnect.
Power Panel Enclosure and Mounting
NEMA 4X Stainless Steel Enclosure. (*Enclosure type and location can vary based on room classification and customer requirements.)
Control Hardware
CompactLogix 5380 PLC and Allen Bradley PowerFlex 525 VFD(s). (*Other PLC and VFD options available upon request.)
UL 508A Certified Panel
Built and certified to UL 508A standards for compliance with industrial control standards
Stack Light with Audible Alarm
A stack light with an integrated audible alarm can be added to provide clear visual and sound-based status indication of lift operation, fault conditions, or safety interlocks. This enhances operator awareness and improves overall system visibility within the processing area.
Safety Light Curtain
A safety light curtain can be installed to create a non-contact protective barrier that prevents access to hazardous areas. If the beam field is interrupted during operation, the system will automatically stop motion to protect the operator from moving equipment.
Safety Laser Scanner
A floor-mounted safety laser scanner can be incorporated to provide three programmable safety zones, enabling warnings, controlled slow-down, or a full system emergency stop based on intrusion level. Multiple scanners can also be linked together to create a wider, continuous protective field around the lift.
Tailored to Your Application
Our equipment is engineered to fit your unique process needs, ensuring optimal performance, efficiency, and compliance. Whether you require specialized materials, customized sizes, or precise automation features, each system is designed to integrate seamlessly with your workflow. Contact our technical engineers today!
